Mobile CB Antennas
Mobile CB Antennas
Mobile CB Antenna High Performance,Sirio,GGD,Moonraker,Sharman,
Mobile CB Antennas

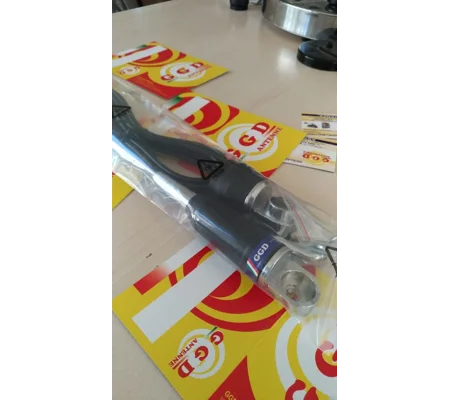

GGD Miniturbo Mobile CB Antenna with Cable (125 cm)Base-loaded mobile CB antenna supplied with coaxial cable for straightforward installation and reliable 27 MHz communication. - Type: base loaded - Radiation: omnidirectional - Polarisation: linear vertical - Frequency range: 27 to 28.5 MHz, tunable - Systems: CB 27 MHz and 10 m HAM - Maximum power: 200 W (CW) continuous, 1000 W (CW) short time - Grounding protection: DC-ground - Height: 125 cm - Supplied with 4 m of RG58 cable - Available in various colours
Mobile CB Antennas
Sirio 2000 Blue Line Mobile CB & 10m Antenna with CableA base-loaded mobile antenna for CB and 10 m operation, tuneable across the 27 to 28.5 MHz range, with a glazed chrome body and blue trim. - Type: base loaded - Bands: CB and 10 m - Frequency range: 27 to 28.5 MHz, tuneable - Bandwidth @ SWR: 1100 kHz (100 channels) - Maximum power: 200 W (CW) continuous / 1000 W (CW) short time - Whip: 17/7 PH stainless steel spring whip - Static discharge protection: DC ground - Whip inclination: 90 degrees, adjustable and detachable for car washing - Materials: brass, copper, nylon, stainless steel - Finish: glazed chromed surface with blue plastic parts - Height: approx. 1450 mm / 4.76 ft - Weight: approx. 530 g / 1.17 lb Supplied with cable.
Mobile CB Antennas
TTI M145 Mobile CB Antenna with Magnetic Mount, Cable and PlugCB and 10m mobile antenna supplied with a magnetic mount for quick fitting, tunable across the 27 to 28.5 MHz range and fitted with a DC-grounded whip for static discharge protection. - Coverage: CB and 10m band, tunable from 27 to 28.5 MHz - Supplied with magnetic mount - DC-ground protection against static discharge - 17/7 PH tapered stainless steel whip - Impedance: 50 Ω unbalanced - Radiation (H-plane): 360 omnidirectional - Polarisation: vertical - Bandwidth at SWR 2:1: 1340 kHz - SWR at resonant frequency: 1.2:1 - Maximum power: 300 W CW continuous, 900 W CW short time - Connector: UHF-male (PL-259) - Cable: 3.6 m RG-58
Mobile CB Antennas
GGD Miniturbo Mobile CB Antenna, PL Mount (130 cm)Compact base-loaded mobile CB antenna for reliable communication on the move across the 27 MHz band. - Type: base loaded - Radiation: omnidirectional - Polarisation: linear vertical - Frequency range: 27 to 28.5 MHz, tunable - Systems: CB 27 MHz and 10 m HAM - Maximum power: 200 W (CW) continuous, 1000 W (CW) short time - Grounding protection: DC-ground - Height: 130 cm - PL mount fitting - Available in various colours Cable is not included.
Mobile CB Antennas
GGD Turbo 1001 Mobile CB Antenna with Cable (165 cm)Base-loaded mobile CB antenna with a stainless steel whip, built for durable operation across the 26 to 28 MHz band and supplied with cable. - Frequency range: 26 to 28 MHz - Load coil at the base - Impedance: 50 ohm, unbalanced - Directivity (H-plane): 360 omnidirectional - Polarisation: vertical - SWR at resonance: 1.2:1 - Bandwidth at SWR 2:1: 2000 kHz - Maximum power: 600 W - 17/7 PH stainless steel whip - Tilts up to 90 , detachable whip for car washing - Protection from electrostatic discharges (physically short) - Materials: brass, copper, nylon, stainless steel - Height: approximately 1650 mm - Available in various colours Supplied with cable.
Mobile CB Antennas
GGD Turbo 1001 Mobile CB Antenna, PL Mount (165 cm)Base-loaded mobile CB antenna with a stainless steel whip for durable operation across the 26 to 28 MHz band, fitted with a PL mount. - Frequency range: 26 to 28 MHz - Load coil at the base - Impedance: 50 ohm, unbalanced - Directivity (H-plane): 360 omnidirectional - Polarisation: vertical - SWR at resonance: 1.2:1 - Bandwidth at SWR 2:1: 2000 kHz - Maximum power: 600 W - 17/7 PH stainless steel whip - Tilts up to 90 , detachable whip for car washing - Protection from electrostatic discharges (physically short) - Materials: brass, copper, nylon, stainless steel - Height: approximately 1650 mm - PL mount fitting - Available in various colours Cable is not included.
Mobile CB Antennas
Proxel King 2000 Mobile CB Antenna with CableThe Proxel King 2000 is a mobile CB antenna with a stainless steel whip, supplied with RG58 cable for 26 to 28 MHz operation. - Brand: Proxel - Frequency range: 26 to 28 MHz - Whip: stainless steel - Cable and connector: RG58, 4000 mm - Height: 200 mm - Mounting hole: Ø 10 mm
Mobile CB Antennas

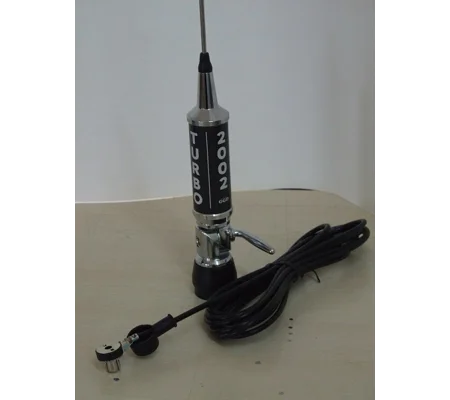

GGD Turbo 2002 CB Mobile Antenna with CableA base loaded mobile antenna for the 27 MHz CB band, supplied with cable and built for high-power mobile stations. - Type: base loaded mobile antenna - Radiation: omnidirectional - Polarisation: linear vertical - Frequency range: 27 to 30 MHz, tunable - Systems: CB 27 MHz and 10 m HAM - Bandwidth: 1.8 MHz at SWR 2 - Maximum power: 2000 W - Duty cycle: 5 on / 5 off - Grounding protection: DC ground - Materials: copper, chromed brass, stainless steel 17/7 PH, UV-stabilised thermoplastic and Zamak - Height: approximately 1920 mm (6.3 ft) - Weight: approximately 730 g (1.61 lb) - Cable: supplied
Mobile CB Antennas
GGD Turbo 2002 Mobile CB Antenna, PL Mount (2 m)High-power mobile CB antenna for operation across the 26 to 28.5 MHz band, fitted with a PL mount. - Frequency range: 26 to 28.5 MHz - Impedance: 50 ohm - SWR: 1.1 to 1.2 - Maximum power: 2000 W - Height: 2 m - Packaged weight: 880 g - PL mount fitting Cable is not included.
Mobile CB Antennas

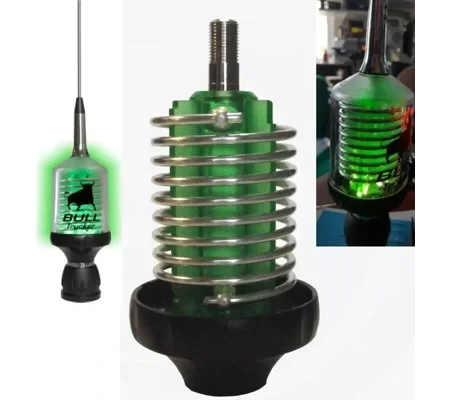

Sirio Bull Trucker 3000 PL LED CB Mobile AntennaA very high power base loaded trucker antenna for the 27 MHz CB band, featuring an LED PCB that lights up on transmit. Designed and manufactured in Italy, it can be used as a single antenna or as a twin co-phased pair. - Type: base loaded trucker antenna - Radiation: omnidirectional - Polarisation: linear vertical - Frequency range: 27 to 30 MHz, tunable - Systems: CB 27 MHz and 10 m HAM - Bandwidth: 1.1 MHz or greater at SWR 2 or less - Maximum power: 3500 W (ICAS) - Coil: low-loss high-Q air wound design, 48 mm, using 3 mm / 9 AWG wire with screwed connections and no solder points - Connector: UHF male (PL-259) - Materials: aluminium, chromed brass, stainless steel 17/7 PH, UV-stabilised thermoplastic and PCB - Height: approximately 1445 mm (4.74 ft) - Weight: approximately 400 g (0.88 lb) - Mounting: on-connector - Cable: not supplied
Mobile CB Antennas
Sirio Bull Trucker 5000 LED Mobile CB Antenna with RG58 CableThe Sirio Bull Trucker 5000 is a very high power base loaded trucker antenna with an LED PCB that lights up during transmission, designed and manufactured in Italy. - Type: trucker antenna, omnidirectional, linear vertical polarisation - Frequency range: 27 to 30 MHz, tunable - Systems: CB 27 MHz and 10 m HAM - Bandwidth: 1.4 MHz at SWR 2 - Maximum power: 5000 W (ICAS) - Coil: low loss, high Q air wound design, 48 mm / 1.9 in, wound with 3 mm / 9 AWG wire, screwed connections without soldering points - Configuration: single antenna or twin co-phased - Cable: 4 m RG58 - Materials: aluminium, chromed brass, stainless steel 17/7 PH, UV-stabilised thermoplastic, PCB - Height (approx.): 1665 mm / 5.46 ft - Weight (approx.): 400 g / 0.88 lb - Mounting: thru-hole The LED PCB provides a clear visual indication when the antenna is transmitting.
Mobile CB Antennas
Sirio Performer 5000 PL Mobile CB & 10m AntennaA high-power base-loaded mobile antenna from Sirio for CB and 10 m operation, with a tapered stainless steel whip and a widely supported PL-259 connection. - Type: CB base loaded - Bands: CB and 10 m - Frequency range: 27 to 28.5 MHz, tuneable - Impedance: 50 Ω unbalanced - Radiation (H-plane): 360 degrees, omnidirectional - Polarization: vertical - Bandwidth at SWR 2:1: 2580 kHz - SWR at resonant frequency: 1.2:1 - Maximum power: 1500 W (CW) continuous / 5000 W (CW) short time - Whip: 17/7 PH tapered stainless steel - Whip inclination: 180 degrees, adjustable and detachable for car washing - Static discharge protection: DC ground - Suitable for magnetic mount - Connector: UHF-male (PL-259) - Length: approx. 1965 mm - Weight: approx. 650 g
