HF Multiband Antennas
Falkos HF3 Multiband HF Mobile Antenna 3.5 to 50 MHzA single multiband antenna covering the HF bands up to 50 MHz. Band changes are made by moving a jumper, then fine-tuning to the wanted frequency within each band using a standard Allen key. Suited to modern quad-band transceivers. - Frequency coverage: 3.5 to 50 MHz - Preset band frequencies: 3.55 / 7.08 / 10.00 / 14.15 / 21.25 / 24.95 / 27.50 / 28.30 / 50.15 MHz - Band selection by jumper, fine-tuned with a standard Allen key - Power: 120 W PEP - Impedance: 50 Ω - Height: approx. 1.7 m - Connector: PL-259
Scanner Antennas

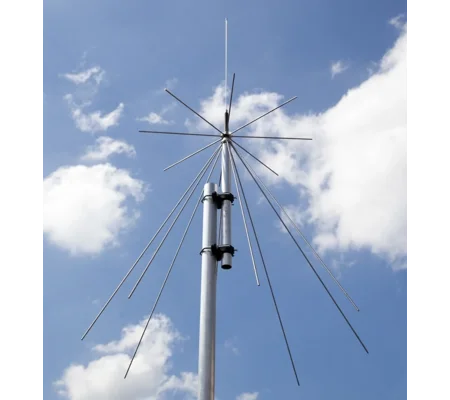

Moonraker Scanking Royal Discone 2000 Wideband Base Antenna 25-2000 MHzThe Scanking Royal Discone 2000 is a wideband discone base antenna offering continuous receive coverage from 25 to 2000 MHz, with transmit capability across several amateur bands. It is well suited to scanner and multiband monitoring stations. - Type: discone base antenna - Receive frequency: 25-2000 MHz - Transmit frequencies: 50-52 / 144-146 / 430-440 / 900-986 / 1240-1325 MHz - Gain: 4.5 dBi over a standard discone - Length: 155 cm - Mast fitting: up to 50 mm - Radials: 8 x 83 cm and 8 x 29 cm - Connector: N-type
Home Base CB Antennas
Prosistel PST-1011J Vertical J-Pole base Antenna for 10-11mAn omnidirectional vertical J-pole antenna for the 10-11m band that operates without a ground plane and handles high power. - Type: vertical J-pole, omnidirectional - Bandwidth: 27-30 MHz (10-11 metres), tunable - Gain: 5 dB over a simple quarter-wave ground plane antenna - VSWR: 1.5:1 - Feed impedance: 50 ohm - Maximum power: 5 kW p.e.p. - Connector: SO-239 (for PL-259) - Does not require a ground plane - Height: approximately 8.5 m - Weight: approximately 5 kg - Wind loading area: 0.15 m - Wind survival: 130 km/h - Accepts mast: 40-50 mm (60 mm on request) - Construction: 6060T6 aluminium with stainless steel bracket and bolts
HF Multiband Antennas
Prosistel PST-152TV Trapped Multiband HF Antenna, 10-15-20 m, V ConfigurationThe Prosistel PST-152TV is a trapped multiband HF dipole for the 10, 15 and 20 metre bands, built in a V configuration for practically omnidirectional coverage without the need for a rotor. - Type: trapped multiband dipole, V configuration - Bands: 10, 15 and 20 m - Radiation: omnidirectional - Gain: 0 dBd - Impedance: 50 ohm - VSWR: below 1:1.5, rising to 1:1.8 at the band ends - Maximum power: 2 kW PEP - Arm length: 4 m (approx. 3 m ground projection per arm) - Rotation radius: approximately 3 to 4 m depending on version - Accepts mast: 48 mm standard, 60 mm optional - Materials: AL6060T6 aluminium, stainless steel bolts - Weight: approximately 6 to 8 kg - Does not require bracing - Suggested mounting height: at least 5 m, works well even at 2 m The independent traps allow band-by-band adjustment for a useful bandwidth on each band, and the 10-15-20 m version can be expanded with an optional 40 m kit. The 1:1 balun is optional and not included. Please check the antenna dimensions ...
HF Multiband Antennas
Pro.sis.tel PST-1524TV HF Trapped Multiband Dipole 10-15-20-40m, V ConfigurationA robust trapped multiband dipole for the 10, 15, 20 and 40 metre HF bands, built for omnidirectional coverage in a "V" configuration and rated for high-power SSB operation. - Trapped multiband dipole for 10-15-20-40 m in a "V" configuration, omnidirectional - Applicable power: 2 kW p.e.p. SSB - Gain: 0 dBd - Impedance: 50 ohm - VSWR: below 1:1.5, rising to within 1:1.8 at the band ends - Arm length: 6 m, ground projection 4 m per arm - Rotation radius: approximately 3 to 4 m depending on the version - Fits masts from 40 to 50 mm (48 mm standard), 60 mm optional - Suggested height at least 5 m, though it performs well even at 2 m - Does not require guying - Traps wound from high-insulation copper wire on fibreglass supports - Construction: AL6060T6 aluminium with stainless steel bolts and hardware - Weight: approximately 11 to 12 kg - Balun optional Please check the antenna dimensions against your structure before purchasing.
