Sirio Twin Log 5 Mobile CB Antenna, 3/8 Thread, with 3/8 Mounting Base

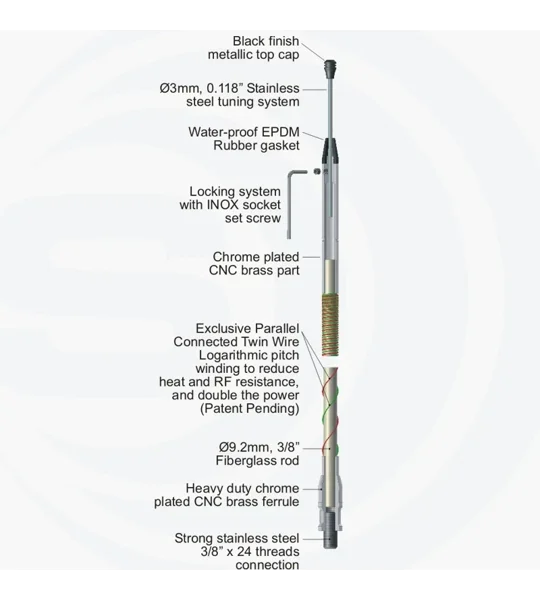

The Sirio Twin Log 5 is a twin-wire, logarithmically loaded mobile CB antenna for the 27 MHz band, supplied with its 3/8 mounting base for use with your existing mount and cable. - Design: twin wire, logarithmic loaded - Radiation: omnidirectional - Polarisation: linear vertical - Frequency range: 26.7 to 27.7 MHz, tunable - System: CB 27 MHz - Bandwidth: 1.5 MHz or greater (SWR 2 or lower) - Maximum power: 1000 W (CW) continuous, 3000 W (CW) short-time - Connector: 3/8" thread - Mounting type: 3/8" thread - Materials: copper, chromed brass, stainless steel, fibreglass - Height: approx. 1475 mm / 4.84 ft - Weight: approx. 390 g / 0.86 lb Please note: the cable and the magnetic mount are not included.

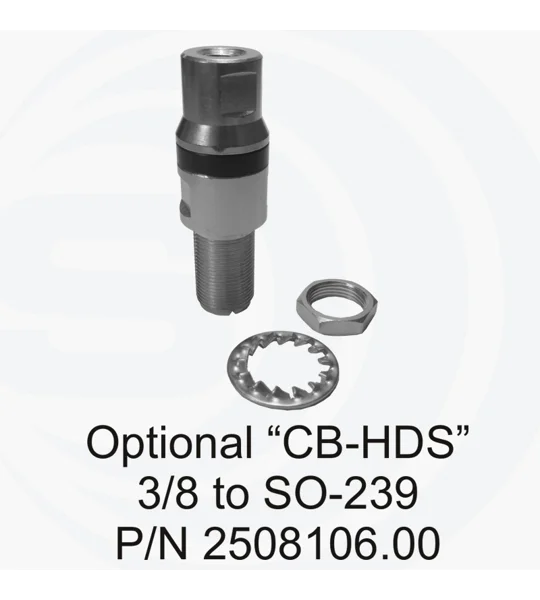

Twin wire - logarithmic loaded Radiation: Omnidirectional Polarization: Linear vertical Frequency range: TWIN-LOG 3: 26.6 … 27.9 MHz Tunable TWIN-LOG 4: 26.65… 27.75 MHz Tunable TWIN-LOG 5: 26.7 … 27.7 MHz Tunable Systems: CB 27MHz Bandwidth: TWIN-LOG 3: ≥ 600KHz @ SWR ≤ 2 TWIN-LOG 4: ≥ 1.1MHz @ SWR ≤ 2 TWIN-LOG 5: ≥ 1.5MHz @ SWR ≤ 2 Max Power: TWIN-LOG 3: 300 Watts (CW) continuous 900 Watts (CW) short time TWIN-LOG 4: 500 Watts (CW) continuous 1500 Watts (CW) short time TWIN-LOG 5: 1000 Watts (CW) continuous 3000 Watts (CW) short time Connector: 3/8'' Thread Mechanical Data: Materials: Copper, Chromed brass, Stainless steel, Fiberglass Height (approx): TWIN-LOG 3: 945 mm / 3.1 ft TWIN-LOG 4: 1250 mm / 4.1 ft TWIN-LOG 5: 1475 mm / 4.84 ft Weight (approx): TWIN-LOG 3: 300 gr / 0.66 lb TWIN-LOG 4: 350 gr / 0.77 lb TWIN-LOG 5: 390 gr / 0.86 lb Mounting type: 3/8'' Thread Adaptor: CB-HDS 3/8-24 female / UHF-female (SO-239) (P/N:2508106.00) THE CABLE IS NOT INCLUDED MAG MOUNT NOT INCLUDED
| Title | Sirio Twin Log 5 Mobile CB Antenna, 3/8 Thread, with 3/8 Mounting Base |
|---|---|
| Brand | Sirio antennas |
| Category | Mobile CB Antennas |
| SKU | R0mnrVy |
| Condition | new |
| Weight | 1.3 kg |
