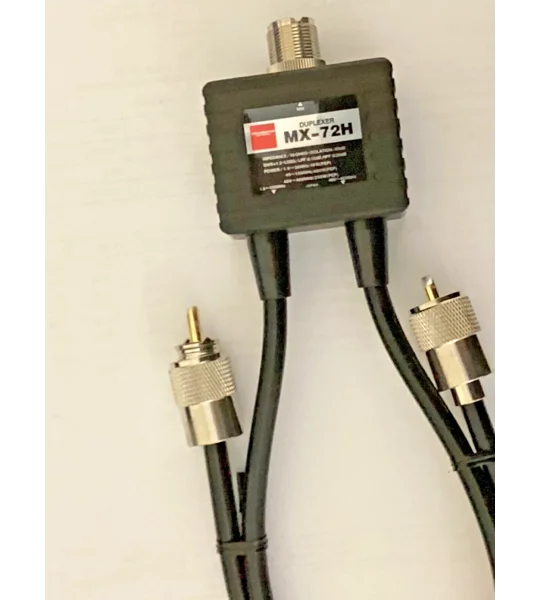

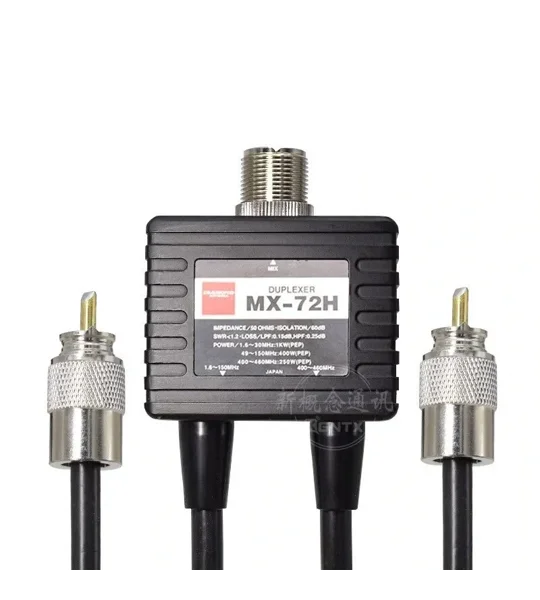

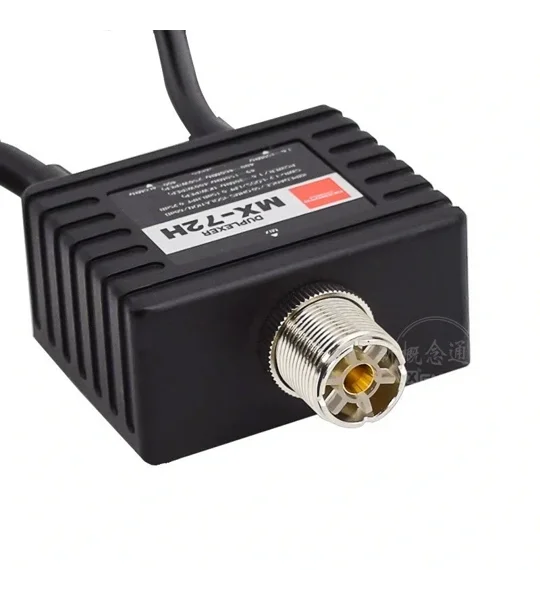

Diamond MX-72H-N Duplexer (1.6-150MHz / 400-460MHz)

The Diamond MX-72H-N is a duplexer that combines and splits HF/VHF and UHF signals on a shared feed line. It is supplied with two 12-inch leads terminated in PL plugs for the split frequencies, an SO-239 common socket and an SO239-to-N connector. - Passband: LPF 1.6 to 30 MHz and 49 to 150 MHz, HPF 400 to 460 MHz (receive only: LPF 1.6 to 225 MHz, HPF 340 to 1000 MHz) - Power rating 1.6 to 30 MHz: 400W CW, 1kW PEP - Power rating 49 to 150 MHz: 150W CW, 400W PEP - Power rating 400 to 460 MHz: 100W CW, 250W PEP - Insertion loss: LPF less than 0.15 dB, HPF less than 0.25 dB - Isolation: LPF more than 60 dB - Impedance: 50 ohms - VSWR: less than 1.2:1 - Common socket: SO239 - Split connections: 2 x PL259 on 35 cm 5D-2VS coaxial leads - Dimensions: 46 x 25 x 57 mm (W x H x D) - Weight: 220 g
