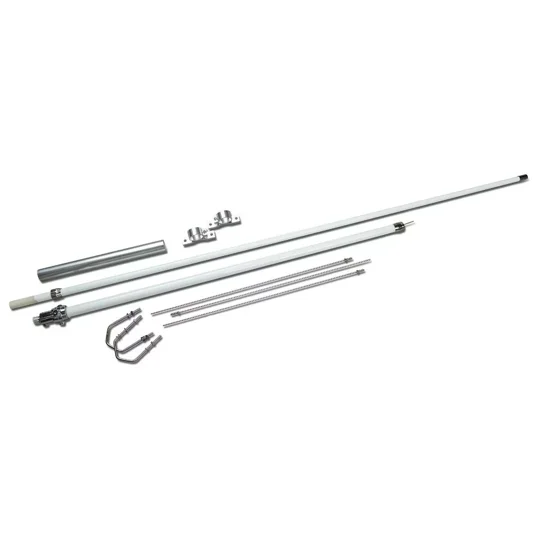

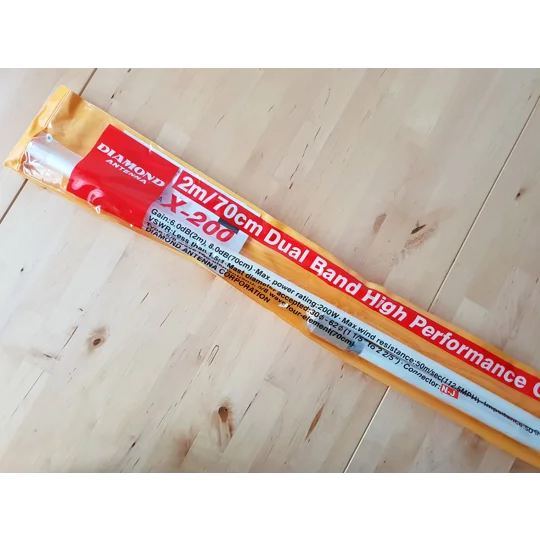

Diamond X-200 2m/70cm Dualband Base Antenna
About Diamond X-200 2m/70cm Dualband Base Antenna 2m/70cm Dual band Base Antenna Diamond Original base antenna-Japan double band. Key Features Fiberglass construction Overlapping outer shells for added strength Strong waterproof joint couplings Stainless steel hardware Wide band performance Factory adjusted no tuning required Highest gain High wind rating DC grounded Specification Frequency: 144/430 MHz VHF gain: 6.0 dB UHF gain: 8.0 dB Maximum Power: 200 W Impedance: 50 Ohms Wind speed: 50 m / sec VSWR: Less than 1.5: 1 Maximum accepted diameter: 30 mm to 62 mm Connector: SO239 Length: 2.5m Weight: 1.2 kg Wavelength: 2 x 5/8 (144 MHz) 4 x 5/8 (430 MHz)
About Diamond X-200 2m/70cm Dualband Base Antenna
2m/70cm Dual band Base Antenna
Diamond Original base antenna-Japan double band.
Key Features
Fiberglass construction
Overlapping outer shells for added strength
Strong waterproof joint couplings
Stainless steel hardware
Wide band performance
Factory adjusted no tuning required
Highest gain
High wind rating
DC grounded
Specification
Frequency: 144/430 MHz
VHF gain: 6.0 dB
UHF gain: 8.0 dB
Maximum Power: 200 W
Impedance: 50 Ohms
Wind speed: 50 m / sec
VSWR: Less than 1.5: 1
Maximum accepted diameter: 30 mm to 62 mm
Connector: SO239
Length: 2.5m
Weight: 1.2 kg
Wavelength: 2 x 5/8 (144 MHz) 4 x 5/8 (430 MHz)
| Title | Diamond X-200 2m/70cm Dualband Base Antenna |
|---|---|
| Brand | Diamond |
| Category | VHF/UHF Base Antennas |
| SKU | 2B4bwoc |
| Condition | new |
| Weight | 2.0 kg |
| Country of Origin | Japan |
