Sirio Monsoon 10-11m Tunable Base Antenna (26-30MHz)

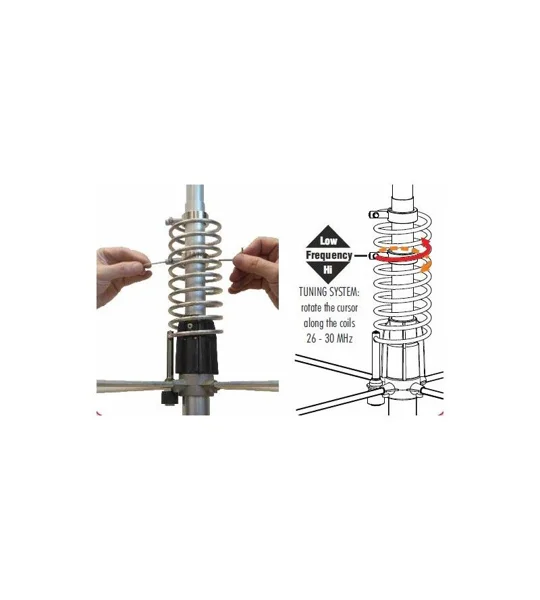

The Sirio Monsoon is a 10-11 metre base station antenna with a bottom tuning system, adjustable across 26-30MHz by acting on the lower coil. A low radiation angle and high power handling make it well suited to serious DX work. - Frequency: 26-30MHz, tunable via the bottom coil - Power handling: 1000W CW continuous, 3000W CW short time - Gain: 1.2 dBd (3.35 dBi) - SWR bandwidth (SWR 2): 1400kHz at 27.2MHz - Height (approx): 7180mm - Radial length: 2000mm - Weight (approx): 3kg - Connector: SO239 - Radiating element in 6063 T-832 aluminium alloy - Large coil wound from Ø6mm aluminium wire (AWG-3) - Omnidirectional radiation with a low radiation angle for DX - Top anti-static cage and strong PC insulator with reinforcement fins - Plastic jointing sleeves
About NEW Sirio Monsoon 10-11m (26-30MHz) Base Antenna The Sirio Monsoon is a new 10-11 meter base station antenna with a bottom tuning system, tunable between 26-30 MHz. Big coil made of a Ø 6 mm aluminium wire, AWG-3. Similar strong PC insulator with reinforcement fins as the New Tornado 2024. High power handling 1000 Watts (CW) continuous and 3000 Watts (CW) short time. Including the well-known top anti-static cage. Low radiation angle for excellent DX. Features Frequency: 26-30MHz Tunable Power: 1000W CW Gain: 1.2 dBd, 3.35 dBi Bandwidth SWR ≤ 2: ≥ 1400kHz @ 27.2MHz Height (approx):7180 mm Radial lenght : 2000mm Weight (approx): 3Kg Connection: SO239 Made of aluminium alloy 6063 T-832 Base station antenna Tunable by acting on the bottom coil Low radiation angle for excellent DX Big coil made of aluminium wire Ø6mm AWG-3 Omnidirectional Plastic jointing sleeves High power handling capability Top anti static cage Strong PC insulator with reinforcement fins Attachments MONSOON_-_LEAFLET (820.88 kB)
| Title | Sirio Monsoon 10-11m Tunable Base Antenna (26-30MHz) |
|---|---|
| Brand | Sirio antennas |
| Category | Home Base CB Antennas |
| SKU | xUHiTIl |
| Condition | new |
| Weight | 3.0 kg |
