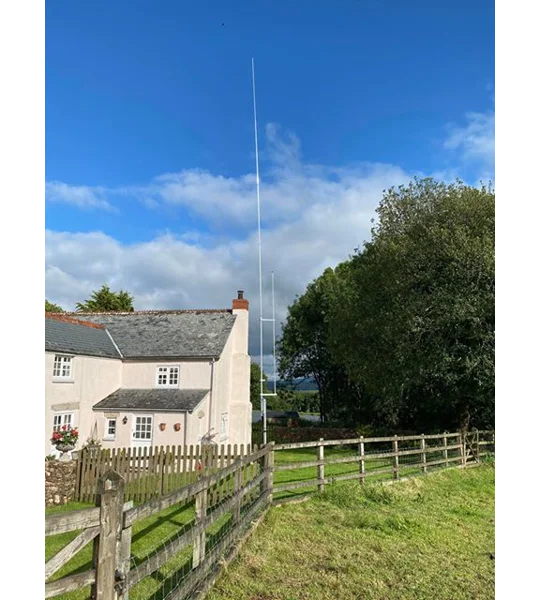

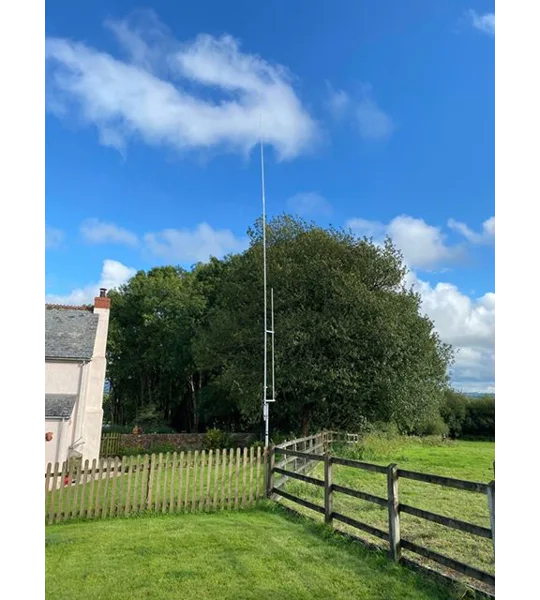

Prosistel PST-1011J Vertical J-Pole base Antenna for 10-11m
An omnidirectional vertical J-pole antenna for the 10-11m band that operates without a ground plane and handles high power. - Type: vertical J-pole, omnidirectional - Bandwidth: 27-30 MHz (10-11 metres), tunable - Gain: 5 dB over a simple quarter-wave ground plane antenna - VSWR: 1.5:1 - Feed impedance: 50 ohm - Maximum power: 5 kW p.e.p. - Connector: SO-239 (for PL-259) - Does not require a ground plane - Height: approximately 8.5 m - Weight: approximately 5 kg - Wind loading area: 0.15 m - Wind survival: 130 km/h - Accepts mast: 40-50 mm (60 mm on request) - Construction: 6060T6 aluminium with stainless steel bracket and bolts
PST-1011J Vertical J-pole antenna for 10-11m 5KW pep; S0239 connector TECHNICAL SPECIFICATIONS: Height: approximately 8.5m Weight = 5Kg Wind area = 0.15m2 Max wind = 130km/h Accepts mast: 40-50mm (60mm on request) 6060T6 aluminium, stainless steel bracket and bolts. PROSISTEL - PST-1011J - J-POLE TYPE ANTENNA TUNABLE FROM 27 TO 30 MHz - DOES NOT REQUIRE A GROUND PLANE - EXTREMELY EFFICIENT PROSISTEL offers a selection of OMNIDIRECTIONAL stand-alone vertical antennas, built with the well-known J-POLE tecnique. These antennas will provide outstanding performance withouth the need of a ground plane. The PST-1011J will give 5 dB more gain than a simple quarter wave ground plane antenna. ELECTRICAL CHARACTERISTICS Bandwidth : 27-30 MHz (10-11 METRI) Gain: 5db/ground plane VSWR: 1.5:1 Feed Impedance: 50 OHM Applicable power: 5 kW p.e.p. MAX. Connector: SO-239 (per PL-259) MECHANICAL CHARACTERISTICS Element Lenght: 27,88 ft. (8.5 m) approx. Weight: 11 lbs. approx. Mast: 2 in. O.D. max. (40-50 cm) Wind area: 0.15 mq Wind survival: 130 km/h Aluminum 6060T6, stainless steel hardware
| Title | Prosistel PST-1011J Vertical J-Pole base Antenna for 10-11m |
|---|---|
| Brand | Pro.sis.tel |
| Category | Home Base CB Antennas |
| SKU | AOocmDf |
| Condition | new |
| Weight | 5.0 kg |
| Country of Origin | Italy |
