Sirio Snake CB Mobile Antenna

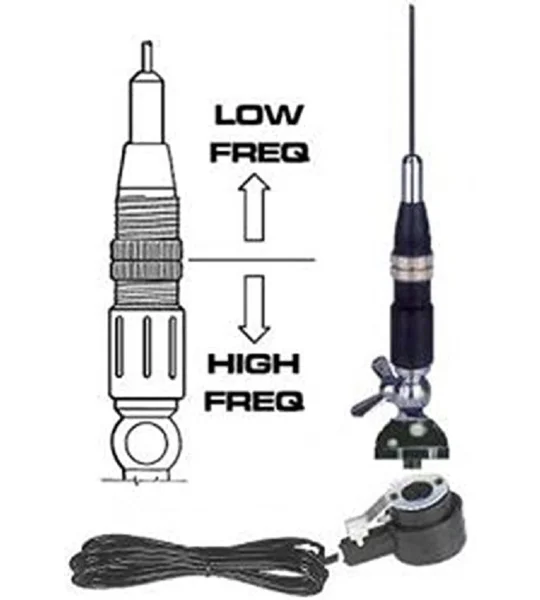

The Sirio Snake is a base-loaded CB mobile antenna with a tapered stainless steel whip that tunes by adjusting the metallic ring. It is supplied with 4 m of RG-58 cable and accepts a wide range of optional mounting bases. - Type: CB base loaded, mobile - Tunable frequency range: 26.5-27.4 MHz - Tuning: adjustable metallic ring (screw or unscrew) - Whip: 17/7 PH tapered stainless steel - Impedance: 50 Ohm unbalanced - Radiation (H-plane): 360 omnidirectional - Polarisation: vertical - Bandwidth at SWR 2 or better: 1000 kHz or more (90 channels) - SWR at resonant frequency: 1.2 or better - Maximum power: 10 Watts (CW) continuous, 40 Watts (CW) short time - Materials: brass, copper, nylon, stainless steel - Height (approx.): 1100 mm - Weight (approx.): 350 g - Supplied with 4 m RG-58 cable - Wide range of optional mounting bases available
Key Features/Specifications: Tunable by screw or unscrew the metallic ring 17/7 PH tapered stainless steel whip Wide range of optional mounting bases available Electrical Data Type: CB base loaded Frequency range tunable: 26.5...27.4 MHz Impedance: 50Ω unbalanced Radiation (H-plane): 360° omnidirectional Polarization: vertical Bandwidth @ SWR ≤ 2: MINI SNAKE 27: ≥ 1000 KHz (90 channel) SWR @ res. freq.: ≤ 1.2 Max. power: 10 Watts (CW) continuous, 40 Watts (CW) short time Mechanical Data Materials: Brass, Copper, Nylon, Stainless Steel Height (approx.) 1100mm Weight (approx.)350 gr with 4 mt cable rg 58
| Title | Sirio Snake CB Mobile Antenna |
|---|---|
| Brand | Sirio antennas |
| Category | Mobile CB Antennas |
| SKU | pagtDHa |
| Condition | new |
| Weight | 0.3 kg |
