Mobile CB Antenna High Performance,Sirio,GGD,Moonraker,Sharman,
Mobile CB Antennas

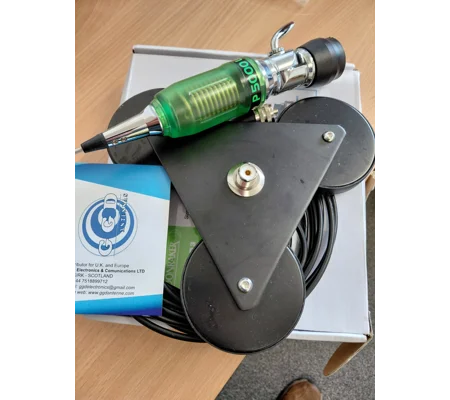

Sirio Performer 5000 LED CB & 10m Mobile Antenna with Trimag-SB Compact Triple Magnetic MountThe Sirio Performer 5000 is a base-loaded antenna for CB 27MHz and the 10m amateur band, built around a 17/7 PH tapered stainless steel whip with an LED PCB. This version is supplied with the compact Trimag-SB triple magnetic mount. - Type: base loaded - Frequency range: 27 to 28.5 MHz, tunable - Impedance: 50 Ω - Polarisation: linear vertical - SWR at resonant frequency: 1.2 or lower - Bandwidth at SWR up to 2: at least 2000 kHz (200 channels) - Maximum power: 1500 W (CW) continuous, 5000 W (CW) short time - Whip: 17/7 PH tapered stainless steel, detachable for car wash - Static discharge protection: DC-ground - Connector: UHF-male (PL-259) - Cable options: 4 m RG58 for power up to 600 W, or 4 m RG303 Teflon for power up to 2000 W (PL version supplied without cable) - Height: approx. 1965 mm - Weight: approx. 650 g - Manufactured in Italy - Trimag-SB compact triple magnetic mount: SO239 fitting, three 95 mm diameter magnets
Mobile CB Antennas
Sirio Bull Trucker 5000 PL LED CB Antenna with Triple Magnetic MountHigh-power base-loaded trucker antenna for CB 27 MHz and 10 m amateur use, featuring an exclusive LED PCB that lights up on transmit. Designed and manufactured in Italy, supplied here with the TRIMAG-SB triple magnetic mount. - Type: base-loaded truck antenna - Radiation: omnidirectional - Polarisation: vertical linear - Frequency range: 27 to 30 MHz, tunable - Systems: CB 27 MHz, 10 m HAM - Bandwidth: 1.4 MHz at SWR 2 - Maximum power: 5000 W (ICAS) - Connector: UHF-male (PL-259) - Coil: low-loss high-Q air-wound design, 48 mm, 3 mm / 9 AWG wire, screwed assembly with no soldering points - Materials: aluminium, chromed brass, 17/7 PH stainless steel, UV-stabilised thermoplastic, PCB - Height (approx.): 1665 mm / 5.46 ft - Weight (approx.): 400 g / 0.88 lb - Can be used as a single antenna or as a twin co-phased pair - TRIMAG-SB triple magnetic mount (SO239), three 95 mm diameter magnets Antenna cable is not included.
Mobile CB Antennas
Sirio Bull Trucker 5000 PL LED CB Antenna with Triple Magnetic MountHigh-power base-loaded trucker antenna for CB 27 MHz and 10 m amateur use, with an exclusive LED PCB that lights up on transmit. Designed and manufactured in Italy, supplied here with a triple magnetic mount. - Type: base-loaded truck antenna - Radiation: omnidirectional - Polarisation: vertical linear - Frequency range: 27 to 30 MHz, tunable - Systems: CB 27 MHz, 10 m HAM - Bandwidth: 1.4 MHz at SWR 2 - Maximum power: 5000 W (ICAS) - Connector: UHF-male (PL-259) - Coil: low-loss high-Q air-wound design, 48 mm, 3 mm / 9 AWG wire, screwed assembly with no soldering points - Materials: aluminium, chromed brass, 17/7 PH stainless steel, UV-stabilised thermoplastic, PCB - Height (approx.): 1665 mm / 5.46 ft - Weight (approx.): 400 g / 0.88 lb - Can be used as a single antenna or as a twin co-phased pair Supplied triple magnetic mount: - Fitting: SO239 socket - Coax: 4 metres RG58 with PL259 plug fitted - Base: protective silver foil base - Size: 30 x 30 cm - Now supplied in chrome only
Mobile CB Antennas
Sirio Performer 5000 LED CB & 10m Mobile Antenna with Triple Magnetic MountThe Sirio Performer 5000 is a base-loaded antenna for CB 27MHz and the 10m amateur band, built around a 17/7 PH tapered stainless steel whip with an LED PCB. This version is supplied with the Trimag-S triple magnetic mount for mobile installation. - Type: base loaded - Frequency range: 27 to 28.5 MHz, tunable - Impedance: 50 Ω - Polarisation: linear vertical - SWR at resonant frequency: 1.2 or lower - Bandwidth at SWR up to 2: at least 2000 kHz (200 channels) - Maximum power: 1500 W (CW) continuous, 5000 W (CW) short time - Whip: 17/7 PH tapered stainless steel, detachable for car wash - Static discharge protection: DC-ground - Connector: UHF-male (PL-259) - Cable options: 4 m RG58 for power up to 600 W, or 4 m RG303 Teflon for power up to 2000 W (PL version supplied without cable) - Height: approx. 1965 mm - Weight: approx. 650 g - Trimag-S triple magnetic mount: SO239 socket, PL259 plug fitted, 4 m RG58 coax, protective silver foil base, 30 x 30 cm The Trimag-S mount is now suppli...
