Pro.sis.tel PST-1524TV HF Trapped Multiband Dipole 10-15-20-40m, V Configuration

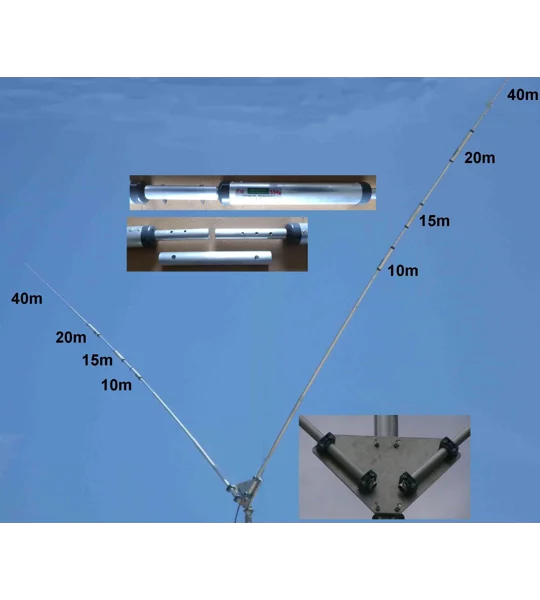

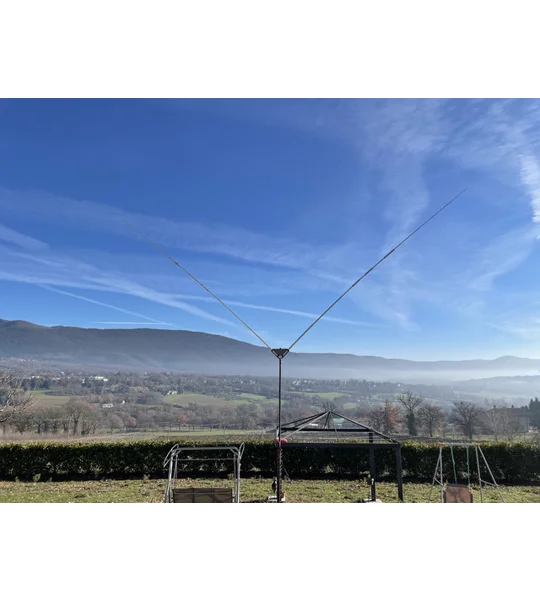

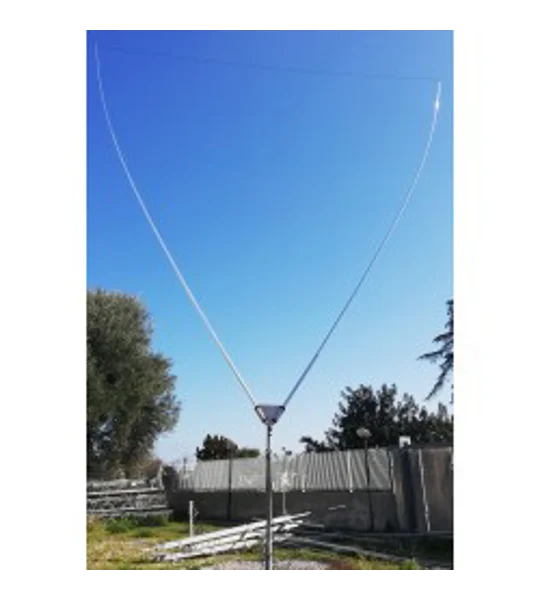

A robust trapped multiband dipole for the 10, 15, 20 and 40 metre HF bands, built for omnidirectional coverage in a "V" configuration and rated for high-power SSB operation. - Trapped multiband dipole for 10-15-20-40 m in a "V" configuration, omnidirectional - Applicable power: 2 kW p.e.p. SSB - Gain: 0 dBd - Impedance: 50 ohm - VSWR: below 1:1.5, rising to within 1:1.8 at the band ends - Arm length: 6 m, ground projection 4 m per arm - Rotation radius: approximately 3 to 4 m depending on the version - Fits masts from 40 to 50 mm (48 mm standard), 60 mm optional - Suggested height at least 5 m, though it performs well even at 2 m - Does not require guying - Traps wound from high-insulation copper wire on fibreglass supports - Construction: AL6060T6 aluminium with stainless steel bolts and hardware - Weight: approximately 11 to 12 kg - Balun optional Please check the antenna dimensions against your structure before purchasing.
PST-1524TV - Trapped multiband dipole 10-15-20-40m, in V configuration, omnidirectional. - 2KW pep - Arm length : 6m, projection on the ground 4m per arm - Mounts on poles of : - 40 to 50mm; - 60mm optional. - Suggested height at least 5m, but works well even at 2m. - The antenna does not require bracing. - Weight 12Kg - Balun optional GENERAL SPECIFICATIONS: - Gain: 0 dBd; - Impedance : 50 ohm; - VSWR : <1:1.5 band ends within 1:1.8; - Rotation radius : from approximately 3 to 4m depending on the version; - Weight : approximately 11kg; - Accepts mast : 48mm (standard) or 60mm (optional); - Material : AL6060T6, stainless steel bolts. PROSISTEL - PST-1524TV - TRAPPED MULTI-BAND DIPOLE FOR 10-15-20-40 METERS IN A "V" CONFIGURATION Very robust construction, with stainless steel hardware. The traps are made with high insulation copper wire wound on fiberglass supports, and allow use of powers up to 2 kW p.e.p. SSB. TECHNICAL FEATURES : APPLICABLE POWER: 2 kW p.e.p. Arms length: 6 m, projection on the ground 4 m per arm Standard mounting on masts from 40 to 50 mm, or 60 mm optional Suggested ground clearance at least 5 m, but works well even at 2 m The antenna does not require guying Weight: 12 kg Before purchasing, check the antenna measurements carefully to see if they are suitable for your structure.
| Title | Pro.sis.tel PST-1524TV HF Trapped Multiband Dipole 10-15-20-40m, V Configuration |
|---|---|
| Brand | Pro.sis.tel |
| Category | HF Multiband Antennas |
| SKU | JUNrF6Q |
| Condition | new |
| Weight | 8.0 kg |
| Country of Origin | Italy |
