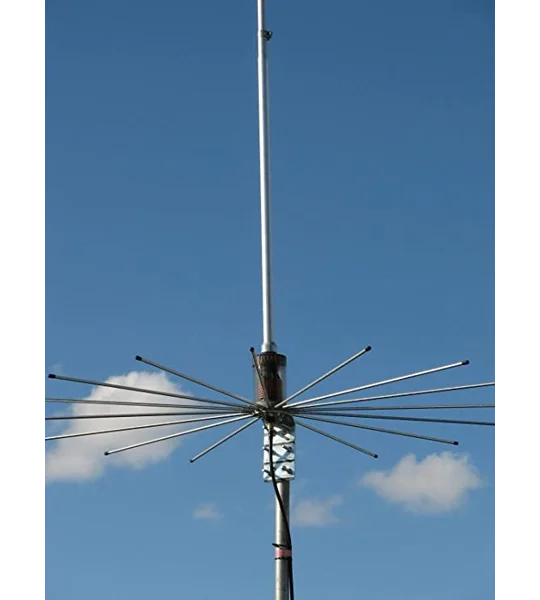

Sirio 2016 5/8 Wave CB Base Antenna

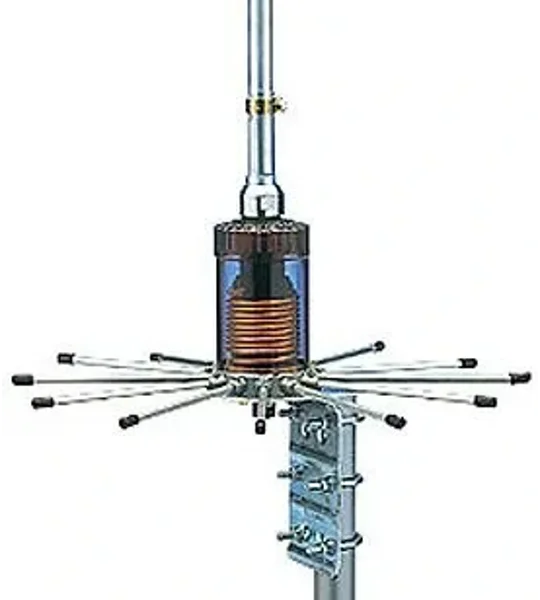

The Sirio 2016 is a 5/8 wave ground plane base antenna for the 27 MHz band, offering a low radiation angle for excellent DX and high power handling in a rugged aluminium alloy build. - Type: 5/8λ ground plane - Frequency range: tunable from 26.4 to 28.2 MHz - Impedance: 50Ω - Radiation (H-plane): 360 omnidirectional - Polarisation: linear vertical - Gain: 1.3 dBd (3.45 dBi) - Bandwidth at SWR 2: 2100 KHz - SWR at resonant frequency: 1.1 - Maximum power: 1000 Watts (CW) continuous, 3000 Watts (CW) short time - Feed system: transformer, DC-ground, base fed - Connector: UHF female - Coil protected by a transparent cover - Whip fitted with a waterproof jointing sleeve - Multi element ground plane - Static discharge protection (DC-ground) - Materials: aluminium alloy 6063 T-832, copper, nylon
Key Features/Specifications: High Power handling Capability Low Radiation angle for excellent DX Coil protected by transparent cover Whip equipped with waterproof jointing sleeve Equipped with excellent multi element ground plane Protection from static discharges DC-Ground Made of aluminium alloy 6063 T-832 Type: 5/8λ ground plane Frequency range: tunable from 26.4 to 28.2 MHz Impedance: 50Ω Radiation (H-plane): 360° omnidirectional Polarization: linear vertical Gain: 1.3 dBd, 3.45 dBi Bandwidth @ SWR ≤ 2: SIRIO 2016 : ≥ 2100 KHz SWR @ res. freq.: ≤ 1.1 Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time Feed system / position: Transformer DC-ground / base Connector: UHF-female Materials: Aluminium, Copper, Nylon
| Title | Sirio 2016 5/8 Wave CB Base Antenna |
|---|---|
| Brand | Sirio antennas |
| Category | Home Base CB Antennas |
| SKU | YNE1rmW |
| Condition | new |
| Weight | 8.0 kg |
| Country of Origin | Italy |
